Long NA-771 Dual-Band Antenna for Baofeng Radios

Your handheld is only as good as its antenna. The stubby rubber duck that ships on most Baofeng radios trades range for size. The NA-771 gives it back.

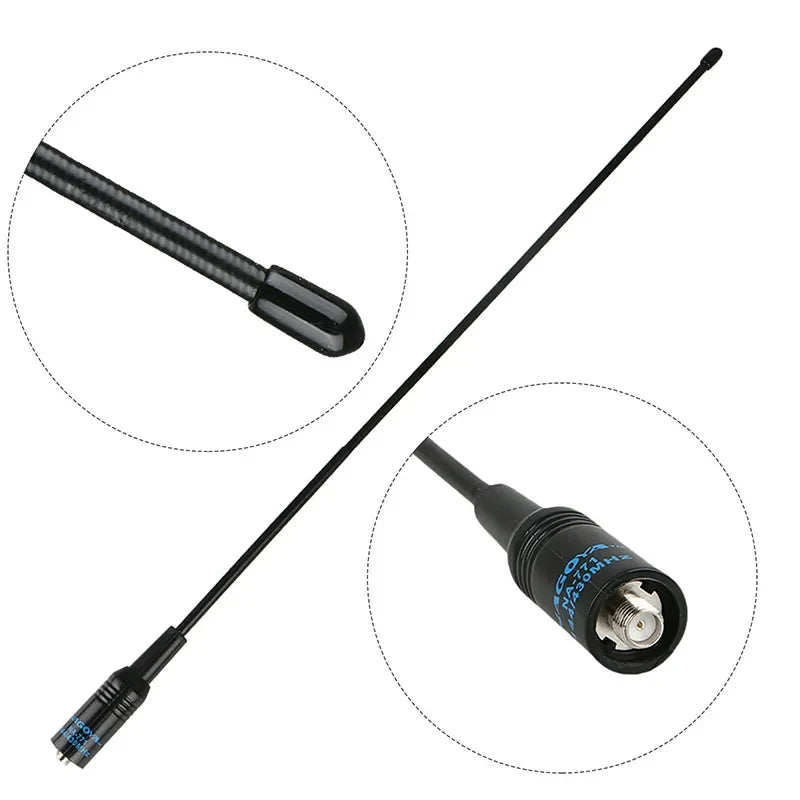

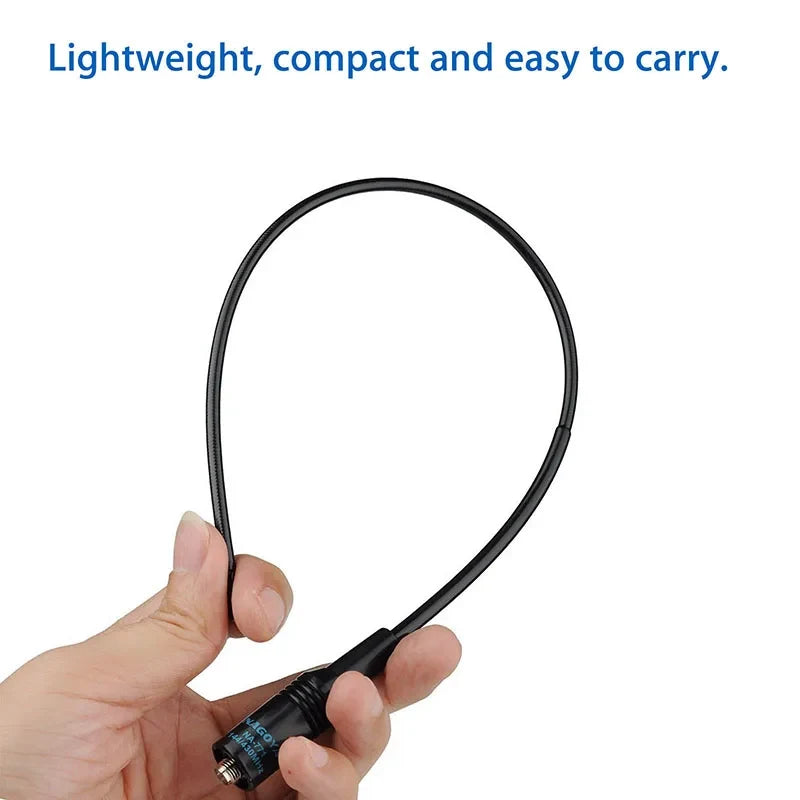

This is a 39cm dual-band whip built for 144/430MHz. It covers the full 136-174 and 400-480MHz range, so it handles both 2m and 70cm, VHF and UHF. Flexible enough to live in a tank bag or jacket pocket and spring back. No dead snap when it catches a branch.

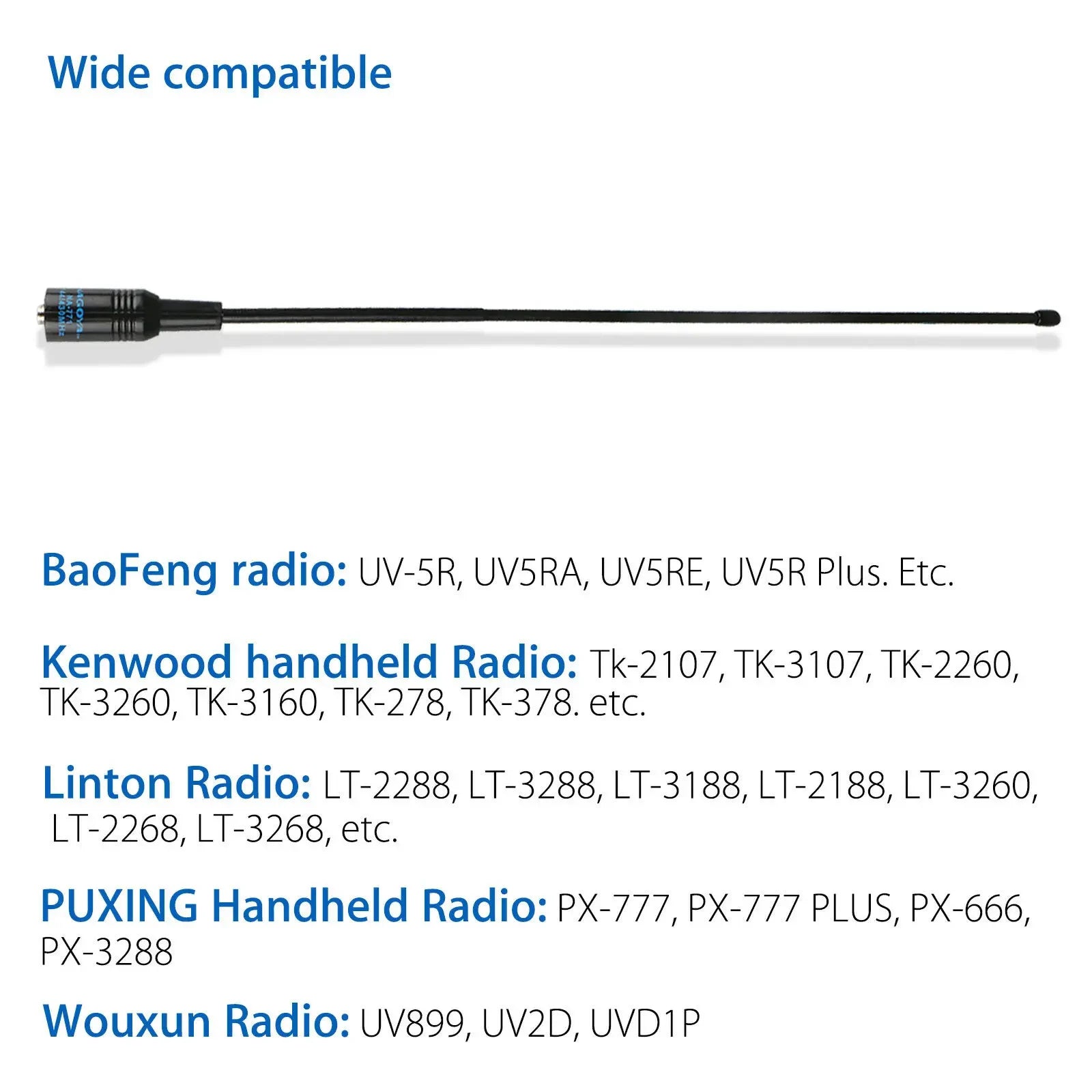

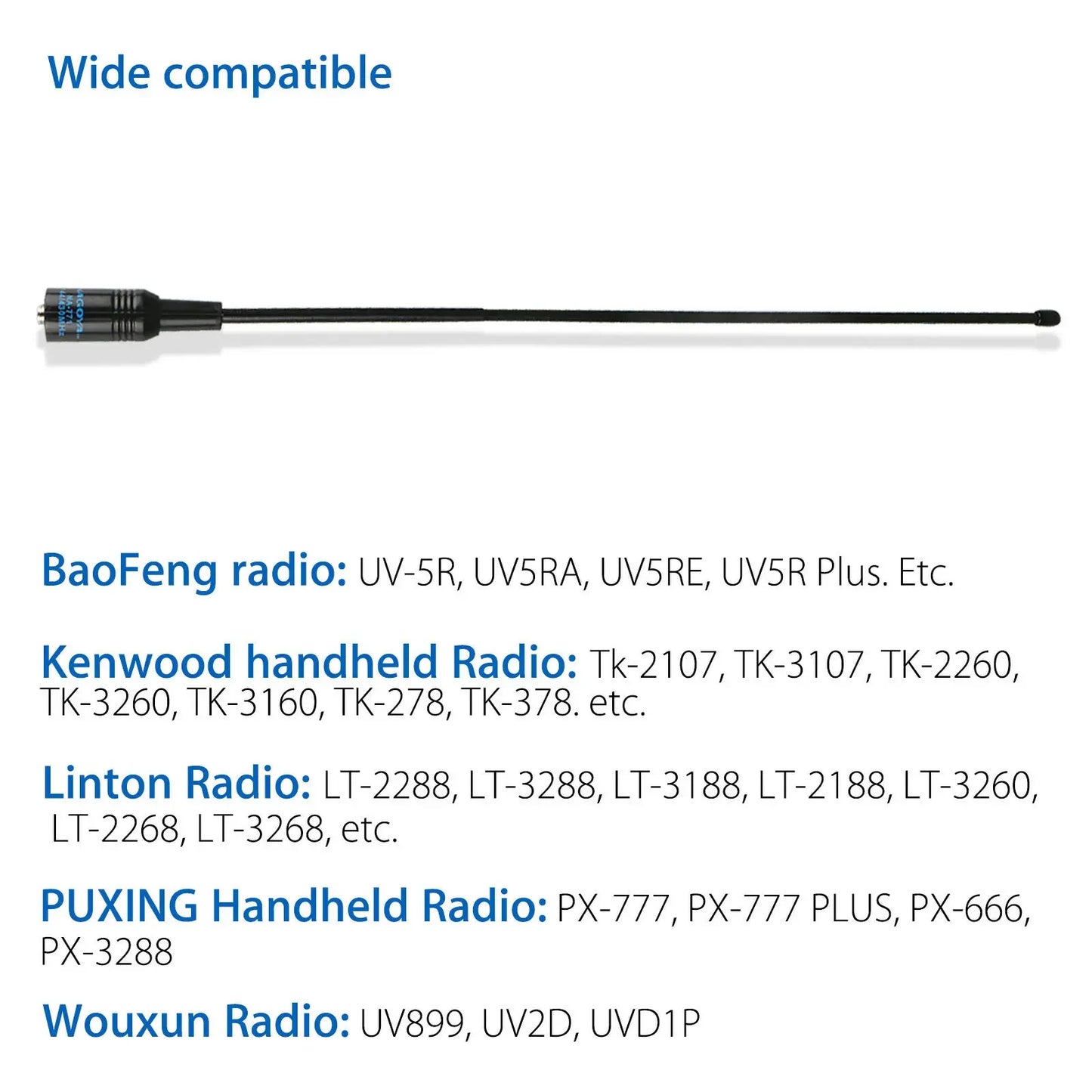

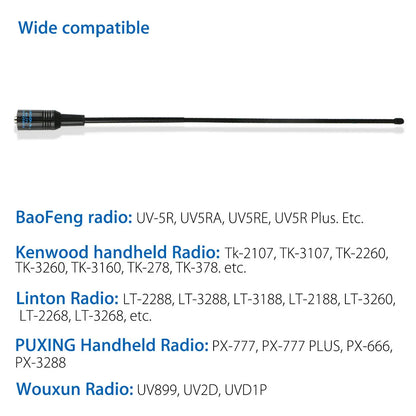

The SMA-Female connector threads straight onto a Baofeng UV-5R, BF-888S, BF-1909 and most handhelds in that family. It also fits Kenwood, Linton, Puxing and Wouxun handhelds. Check your radio's connector before you order. If the pin sticks up, this is the one.

When you are running a group ride out of cell range, radio is how you keep the pack together. A better antenna is the cheapest range upgrade you will make.

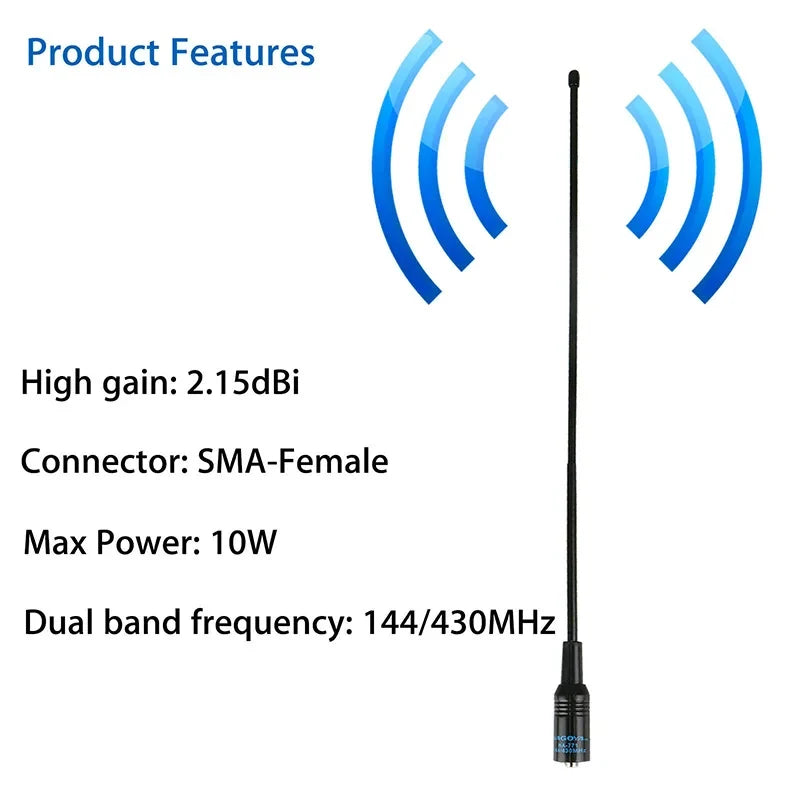

Specs

• Model: NA-771
• Frequency: 144/430MHz dual band (136-174 / 400-480MHz)

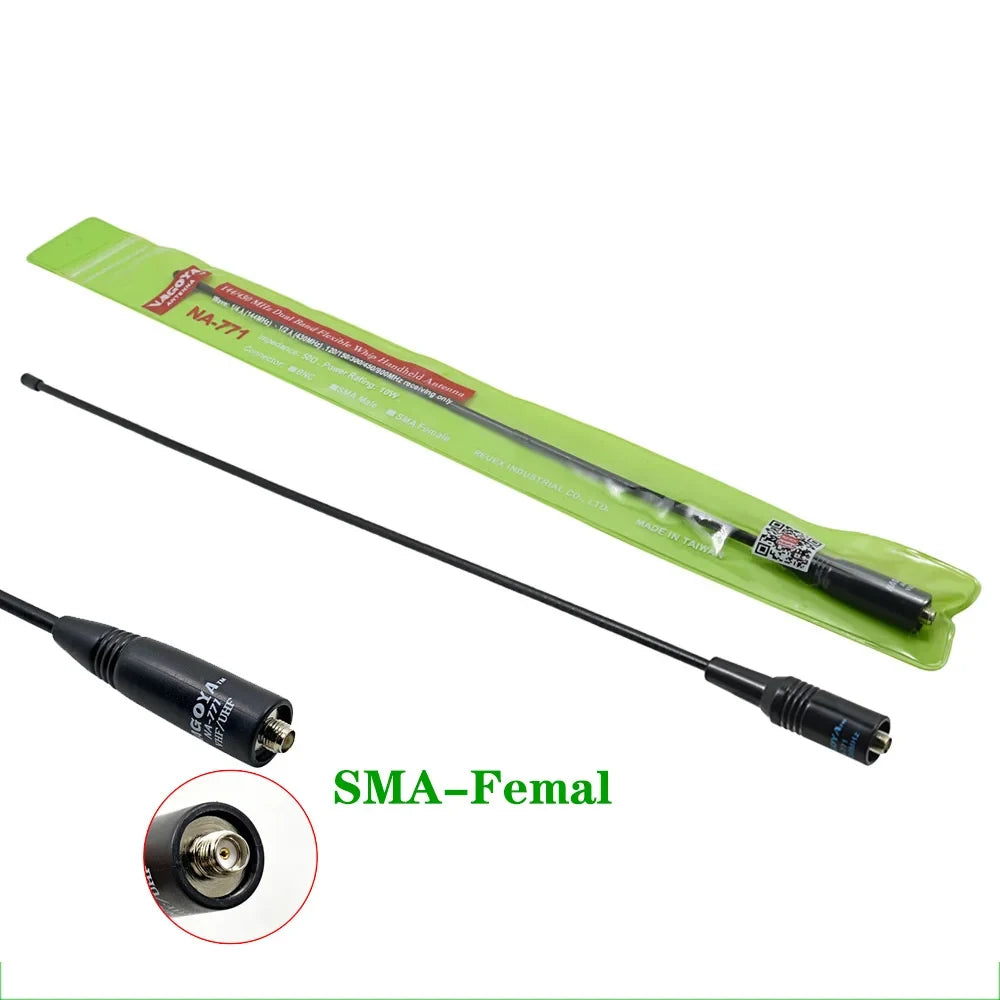

• Connector: SMA-Female
• Length: 39cm
• Gain: 2.15dBi
• Impedance: 50 ohm
• VSWR: less than 1.5
• Max power: 10W
